this is confusing to me though: raising the CPU clock frequency to 8MHz (from 4) increased my power consumption in sleep. which is weird because the CPU clock is supposed to be disabled in standby mode. wondering if the main clock is still running for some reason…
(original)
Replying to @josecastillo
oh wow: moving to the RTC-based interrupt somehow caused my issues with STANDBY mode to go away. 218 µA now.
(original)
Replying to @josecastillo
also my god I need to get a real windows machine… running Atmel Studio in Parallels has had my Mac’s fan running full tilt for days now.
(original)
Replying to @josecastillo

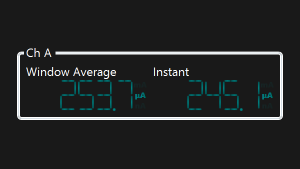

WELL THAT WORKED! I’m ticking at one second per second using just the RTC, and power consumption is down from 650µA to 250µA. still this is not nearly low enough; really have to figure out this standby mode thing.
(original)
Replying to @josecastillo
or PER7, I suppose. either way, let’s give this a shot.
(original)
Replying to @josecastillo

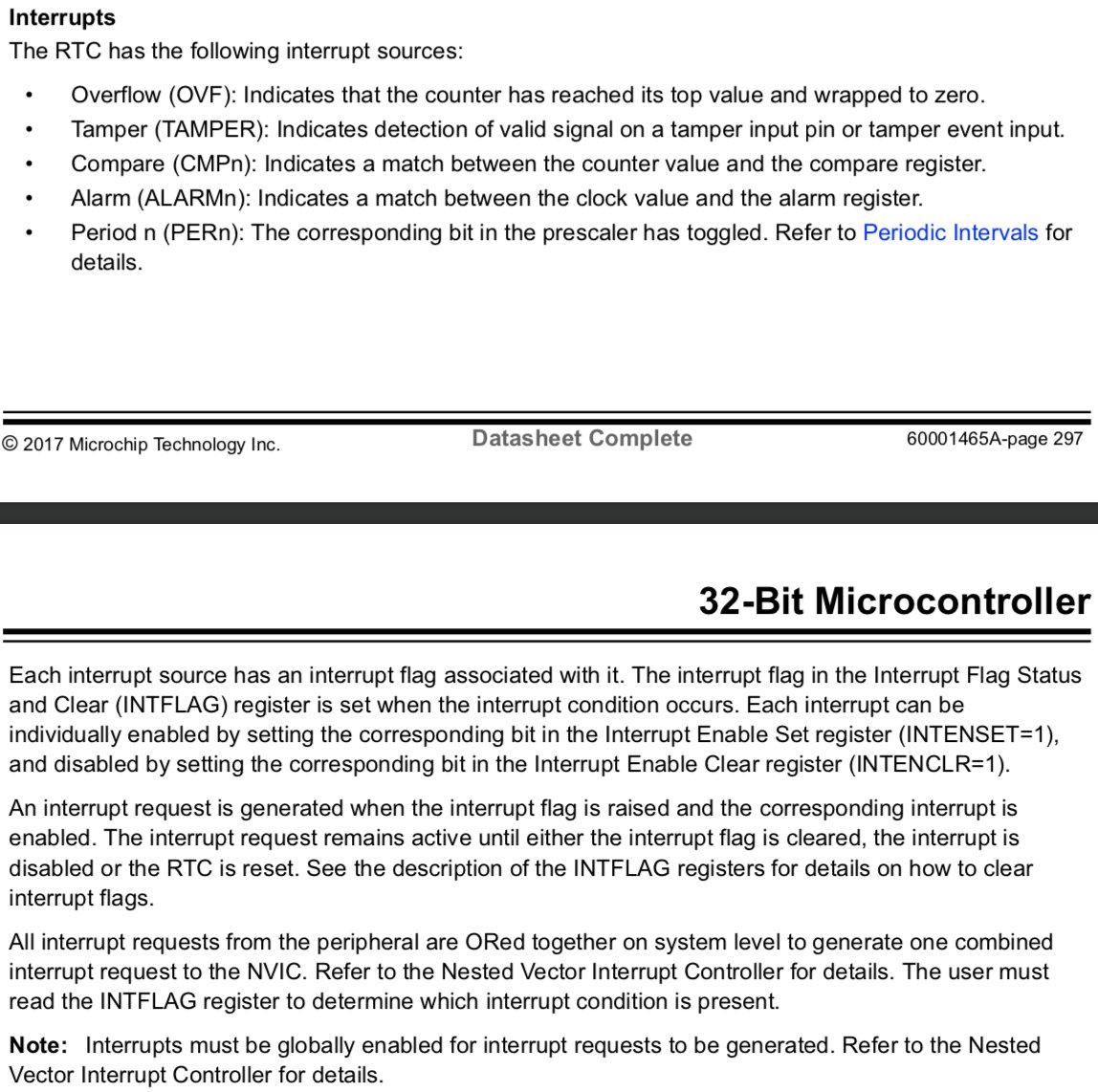

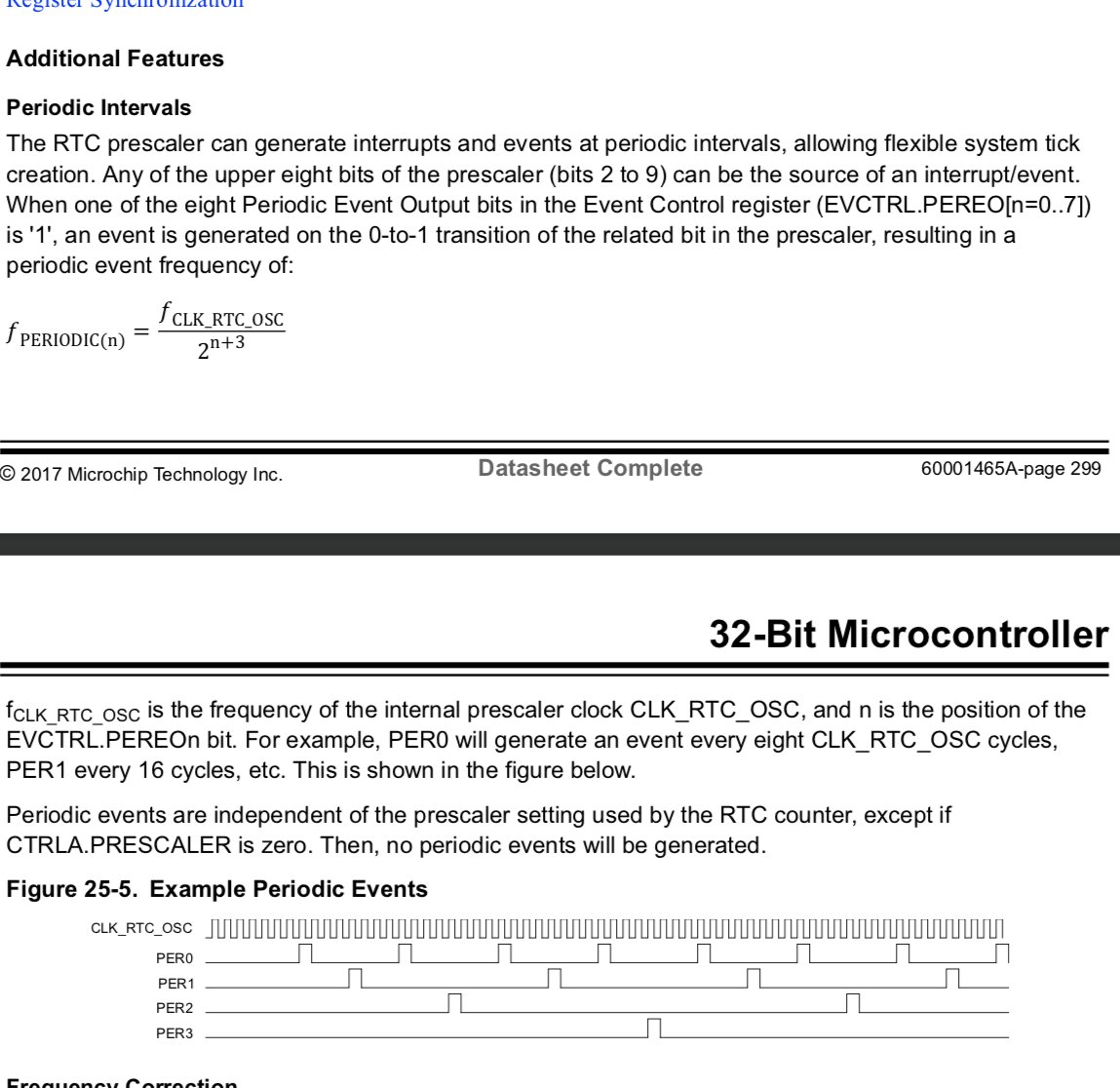

This is promising: to turn the 1,024 Hz clock into a 1 Hz tick, the RTC uses a “prescaler” to divide repeatedly by two. AND it can generate an interrupt when any of the 8 high bits of the prescaler flip. if I set an interrupt on the high bit, PER8, I should get a one second tick.
(original)
Replying to @darianbjohnson

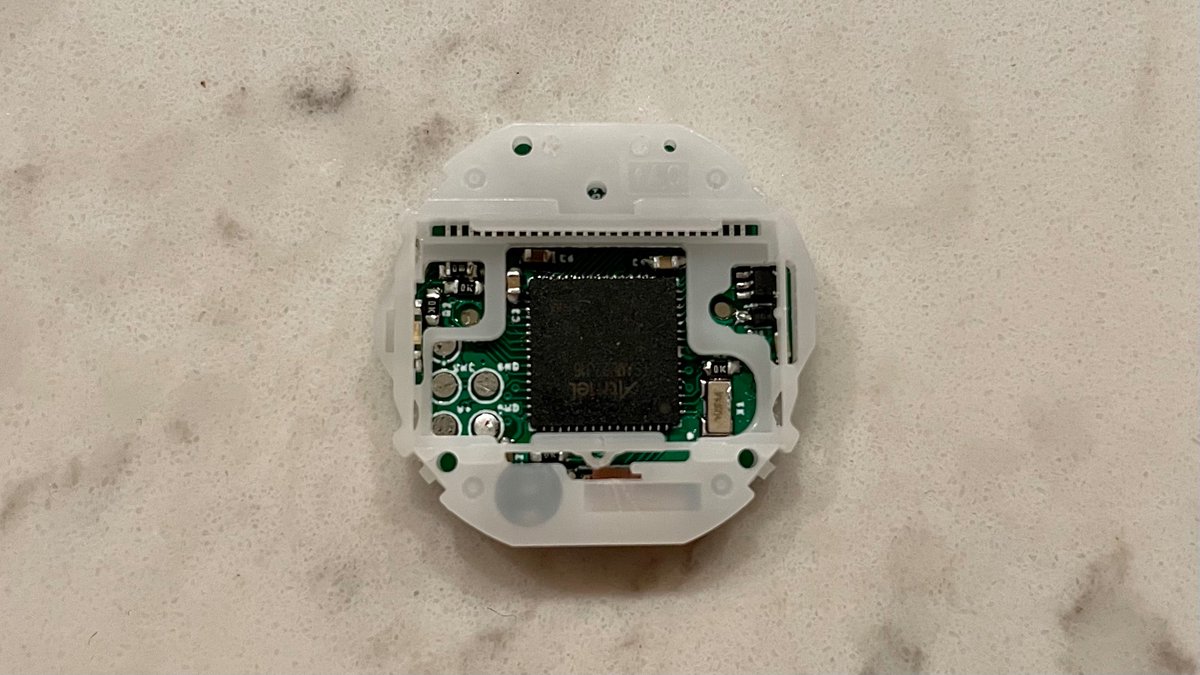

I think the internal RTC is probably going to be the best route for low power, but also I don’t think there’s room in the watch case for another chip. Also part of the goal of this project is to try to wring as much functionality as possible out of this one microcontroller :)
(original)
Replying to @josecastillo

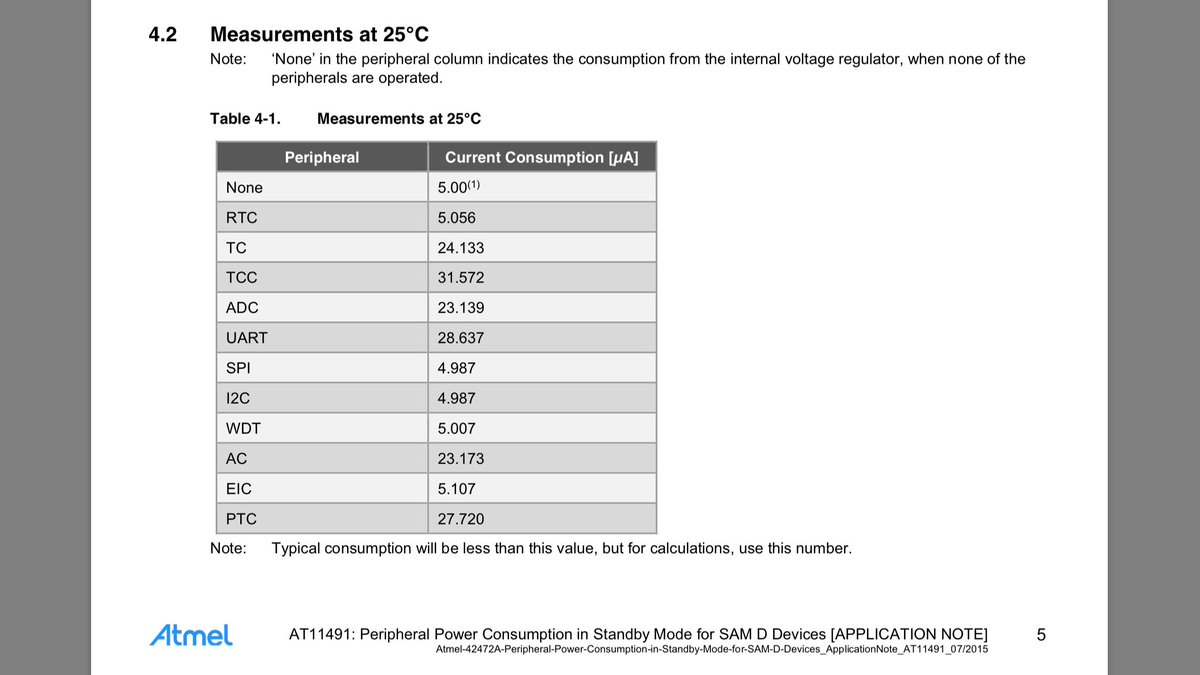

this actually makes sense when you think about it: the RTC is clocked at 1.024 kHz, and the TC is clocked 32,000 times faster. going faster, doing more stuff, it all takes power. so now I’m delving back into the data sheet to see if the RTC can generate the 1 Hz interrupt I need.
(original)
Sunday watch thread: yesterday I set up a timer/counter or TC peripheral to wake the watch up once a second. but then in reading some documentation about the similar SAM D series, I realized that I’d shot myself in the foot: the TC is apparently not all that power efficient.
(original)
Replying to @josecastillo
“This sort of subversive crypto art is very emblematic of 2020s style, but unfortunately it’s also quite common. You say you have a private key to prove ownership and provenance, but frankly there were so many NFT pieces made back then, no one can keep track anymore.” ✨ $15-$25
(original)
quick, someone take this to antiques roadshow https://twitter.com/KWF/status/1388332495288995840
(original)
Replying to @av1d508
The F-91W does something with an inductor to shove current to the piezo. Ran out of room for that, but found that connecting an output right to the buzzer yields decent sound. I read I should model it as a capacitive load, which I don’t quite grok; but as long as it beeps I’m ok!
(original)
Replying to @frivolous_circs
This is the way.
(original)
Replying to @frivolous_circs
Harness the crystal!
(original)
Replying to @av1d508
I know right? Like at some point I’m going to get to work on PWM’ing the piezo buzzer, and it basically involves zatzing a rock until it freaks out.
(original)
it’s kind of wild to me how accurately the crystal oscillator keeps time. you’re a piece of quartz. I’ve literallly found rocks like you on hikes. what business do you have oscillating at 32.768 kilohertz exactly.
(original)
Replying to @kfury
the most bonkers part of this whole situation is how uproariously easy it would be for @dhh fo fix the whole thing even now. it takes not even a third of a tweet: “I was wrong on this one. I realized this after listening more. We will do better by our people in the future.” Done.
(original)
Replying to @jason_sweeten
dare reasonable (but nice!) things
(original)
Replying to @jason_sweeten
i haven’t seen an airport in years.
(original)
Replying to @josecastillo
reading list:
• AT04296: Low Power Features of SAM L Series Devices
• AT06549: Ultra Low Power Techniques
http://ww1.microchip.com/downloads/en/AppNotes/Atmel-42412-Low-Power-Features-of-SAM-L-Series-Devices_ApplicationNote_AT04296.pdf
https://www.microchip.com/content/dam/mchp/documents/OTH/ApplicationNotes/ApplicationNotes/Atmel-42411-Ultra-Low-Power-Techniques-AT06549_Application-Note.pdf(original)
Replying to @josecastillo
…and still I’m chewing through 650µA while asleep. sad face :( but then again, I never did master the STANDBY sleep mode the other night; I’m still idling in IDLE. And I haven’t done much in terms of thinking about low power modes. Yet. So maybe that’s the second half of my day.
(original)
Replying to @josecastillo
ok! Turned out to be easier: the timer driver can fire an interrupt at any count, so I’m dividing the 32768 Hz clock by 2, and asking for an interrupt every 16,384 ticks. when I get that tick, I’m flashing the LED ever *ever* so briefly, just to simulate consuming some power…
(original)
Replying to @josecastillo

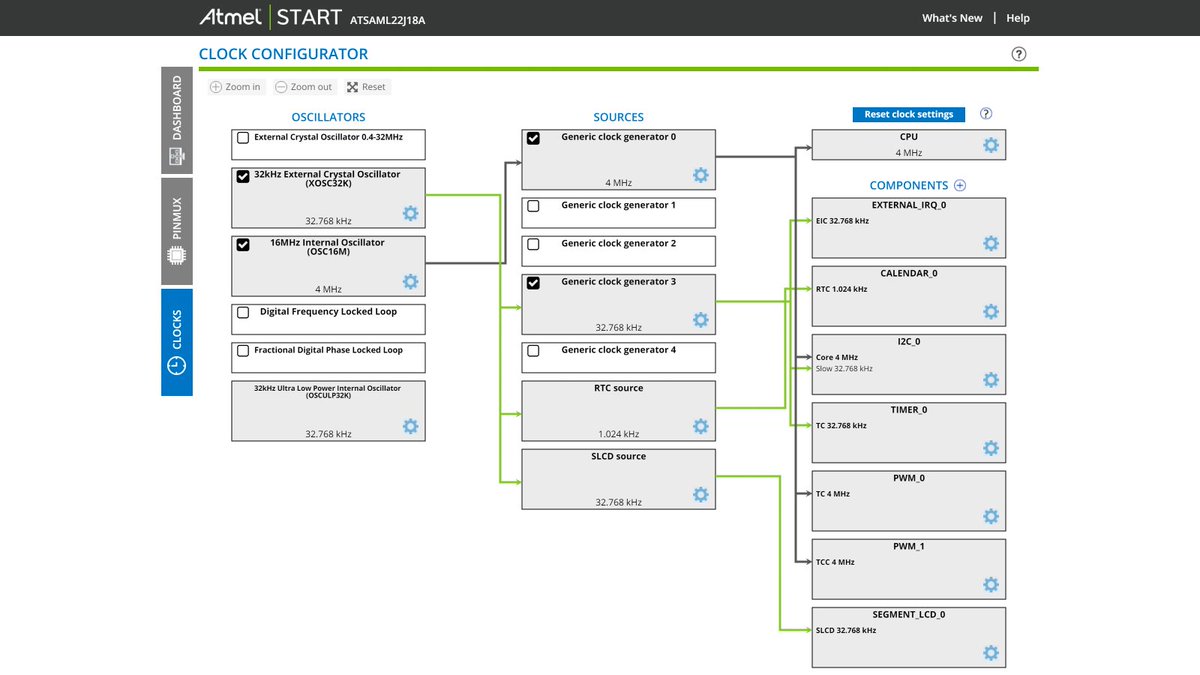

I have my issues with the IDE for sure, but I do appreciate how Atmel START offers a very visual description of how my clocks run my peripherals under the hood. I sense that it’s reasonably comprehensible, even if you don’t know all the minutiae of the clock system.
