The character set, I think! Because of the F-91W’s quirky LCD layout, there are some limitations: the 1st and 3rd digit require a “lowercase” 7, and can’t display most letters. Top left can do almost everything; its neighbor, less so. Top right pair can show numbers from 0 to 39.
(original)
Replying to @josecastillo

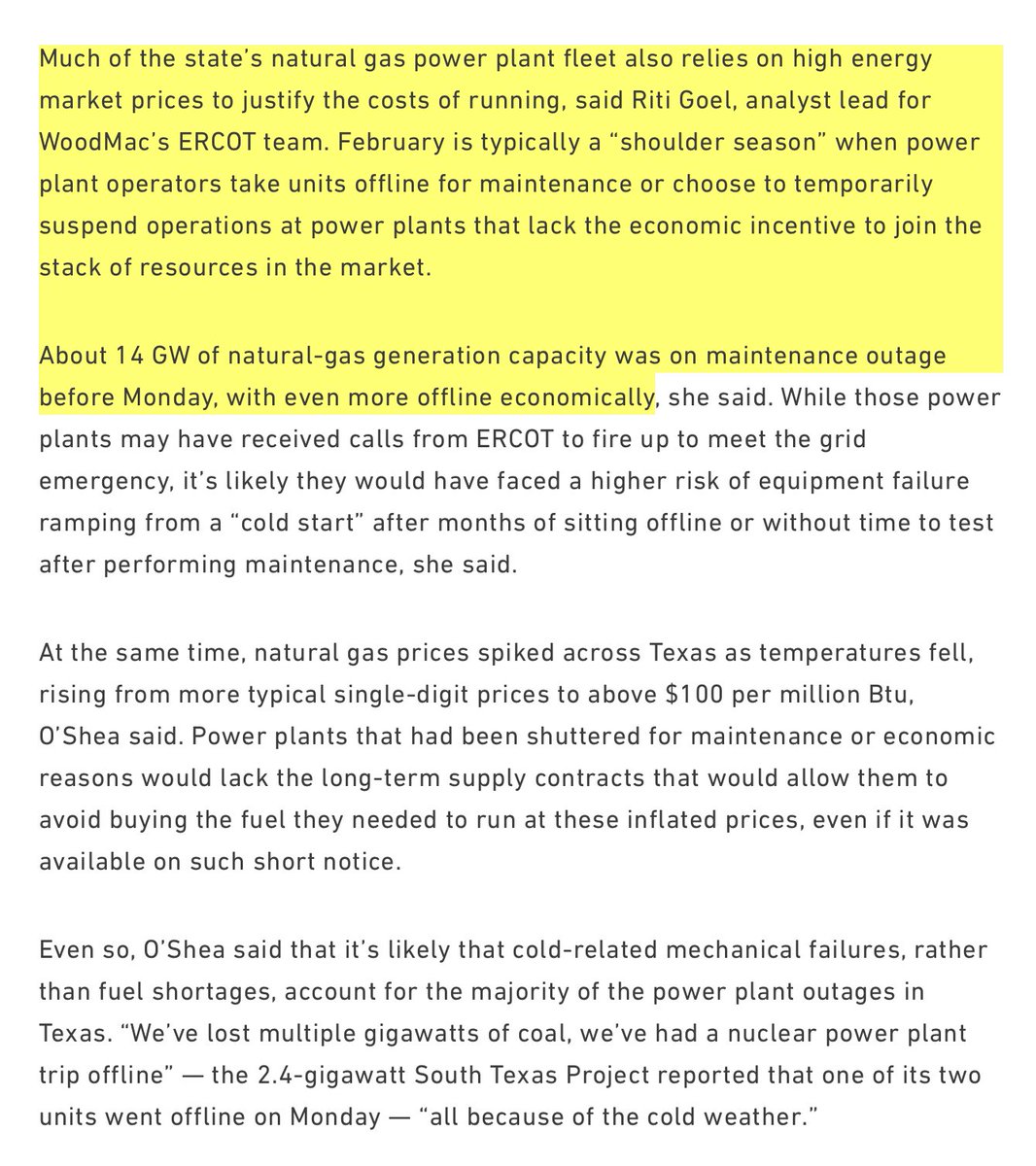

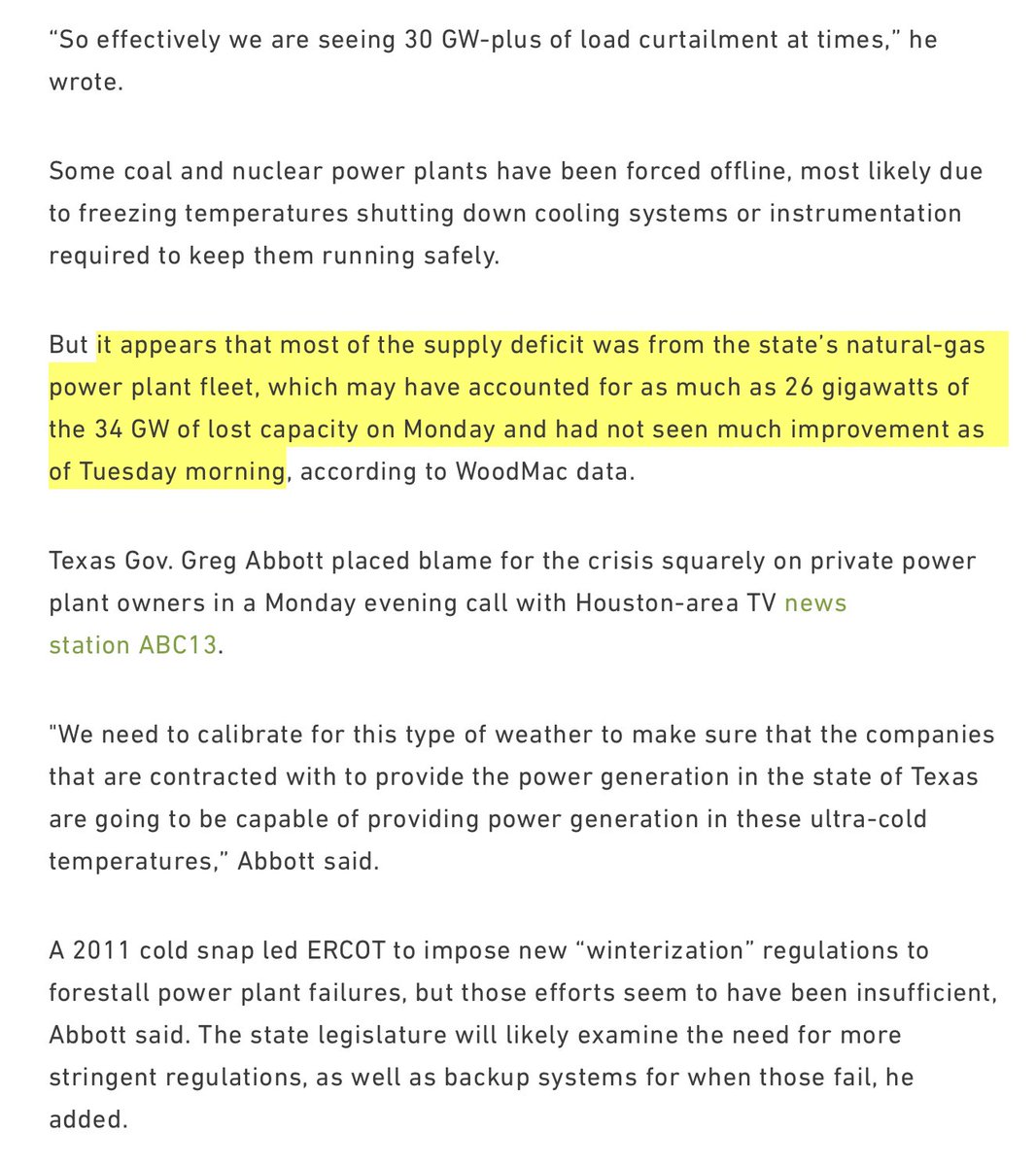

update: power on at my folks’ house; they’re warming up. Side note, if anyone in your feed tries to blame green energy for the blackouts, send them this. TL;DR: it was mostly natural gas, offline due to cold weather, ineffective regulations and capitalism. https://www.greentechmedia.com/articles/read/texas-energy-system-faces-a-winter-reckoning
(original)
My grandma’s lifeline phoned my parents because it detected a temperature of 40° F (4.5° C) inside her house. She’d been without power all night. They braved icy streets to get her, but now she’s headed back to their house, where power is on for 2 of every 20 minutes. WTF, Texas?
(original)
Replying to @tablatronix

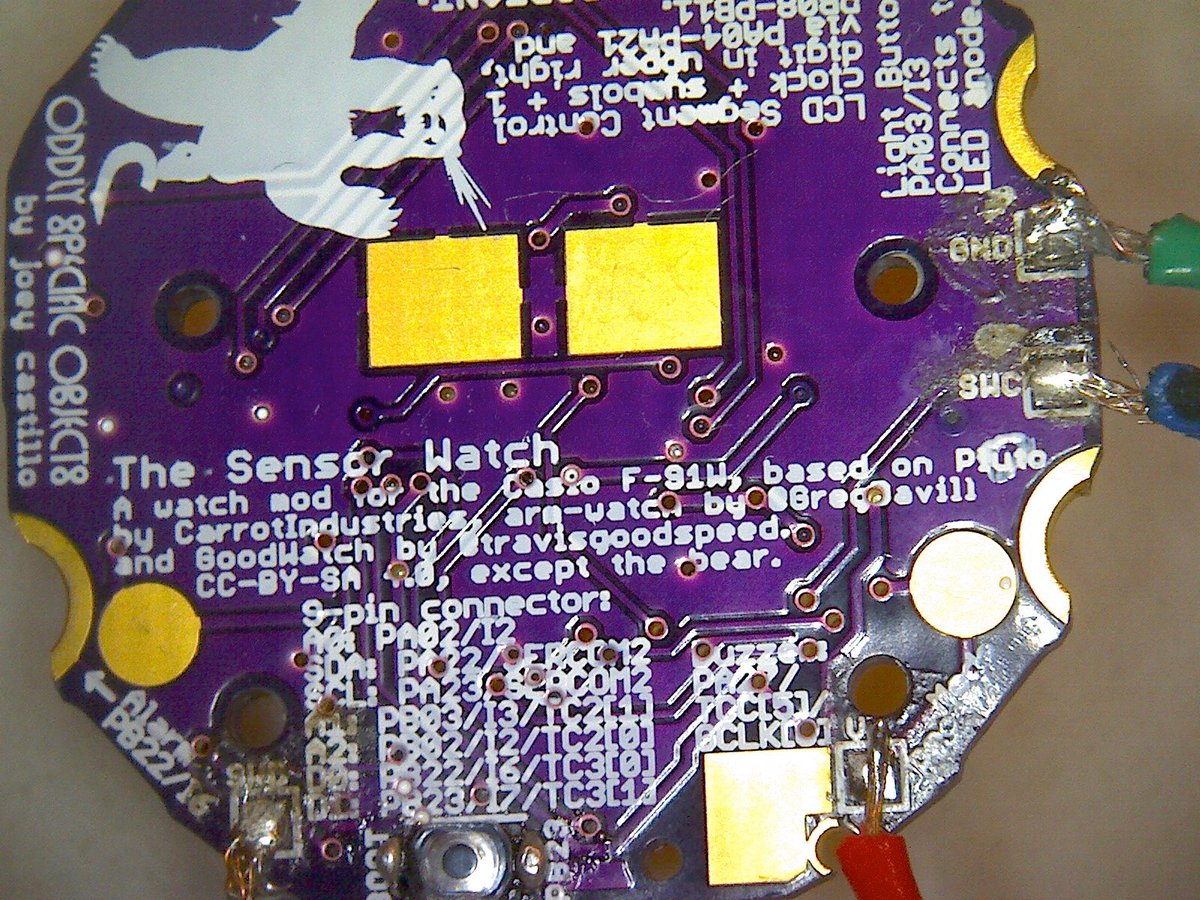

I think it’s possible that on the prototype board, there was higher stray capacitance from the longer traces to where the capacitors had been, and maybe that was enough to get it ticking. Either way, I need to put them back if I want the device to work reliably.
(original)
Replying to @tablatronix

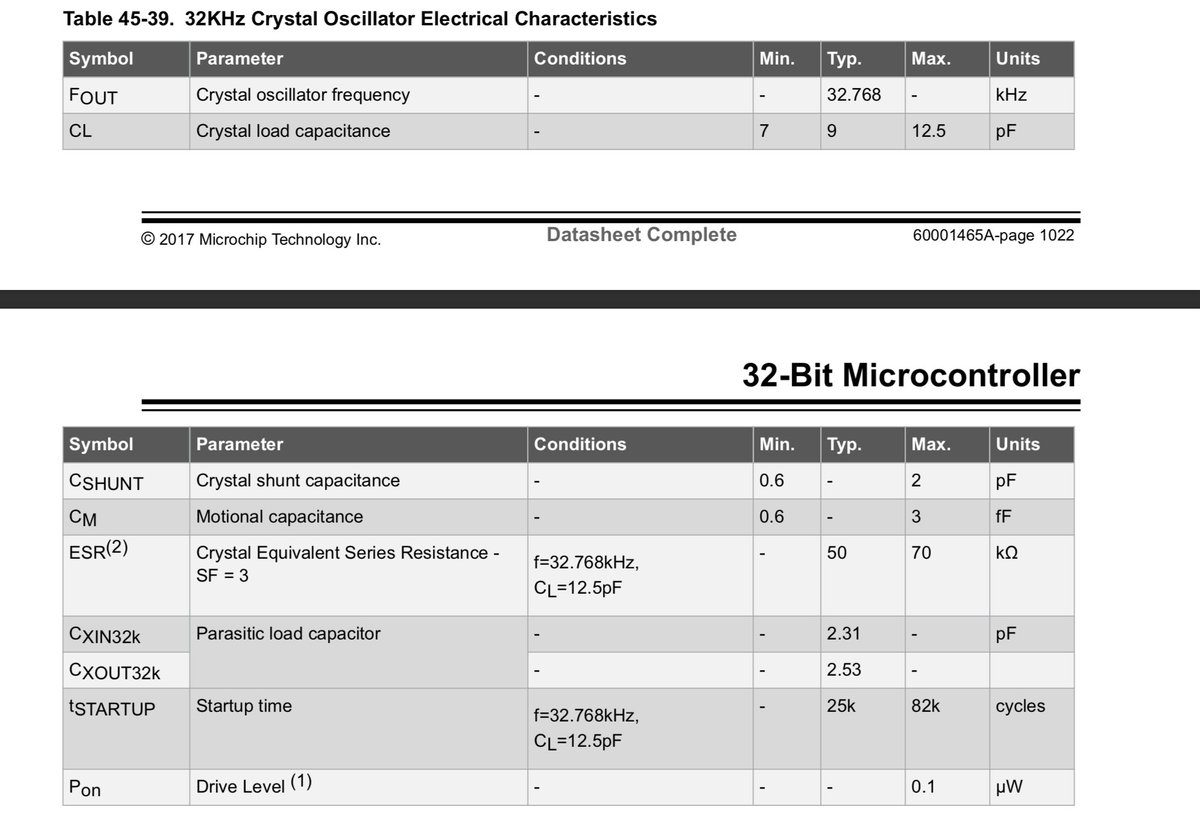

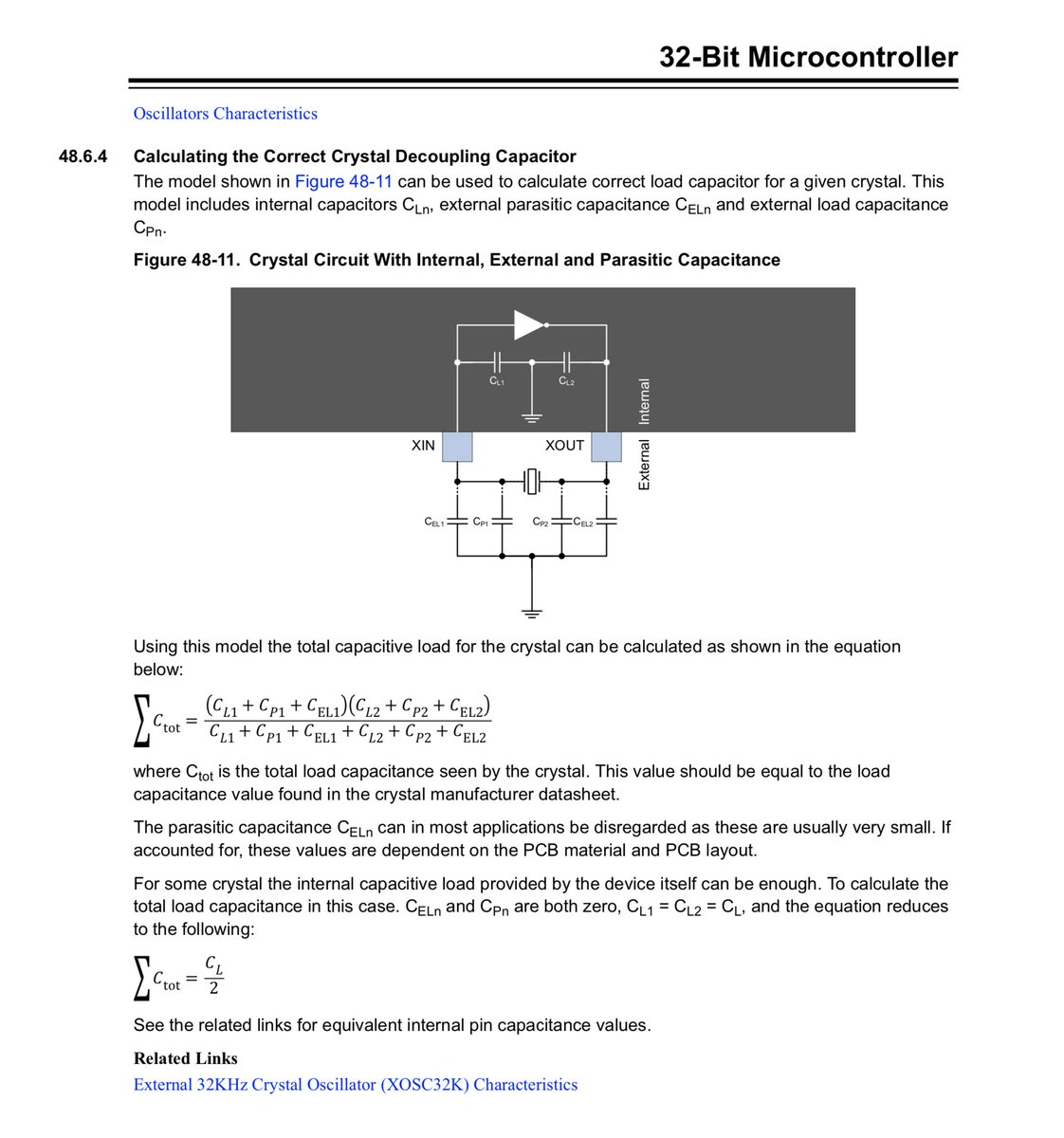

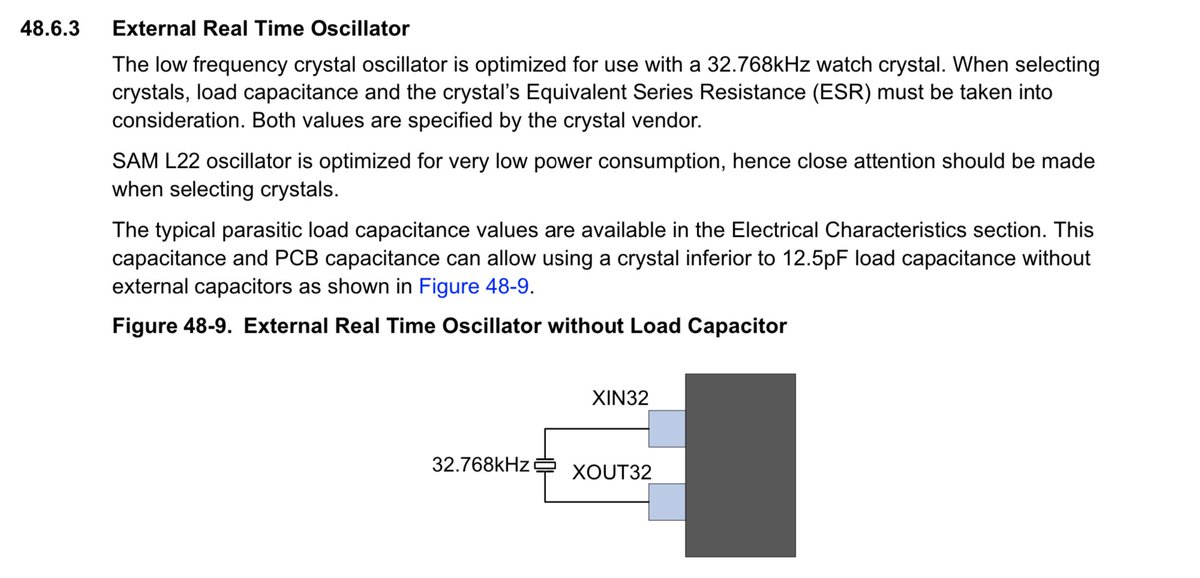

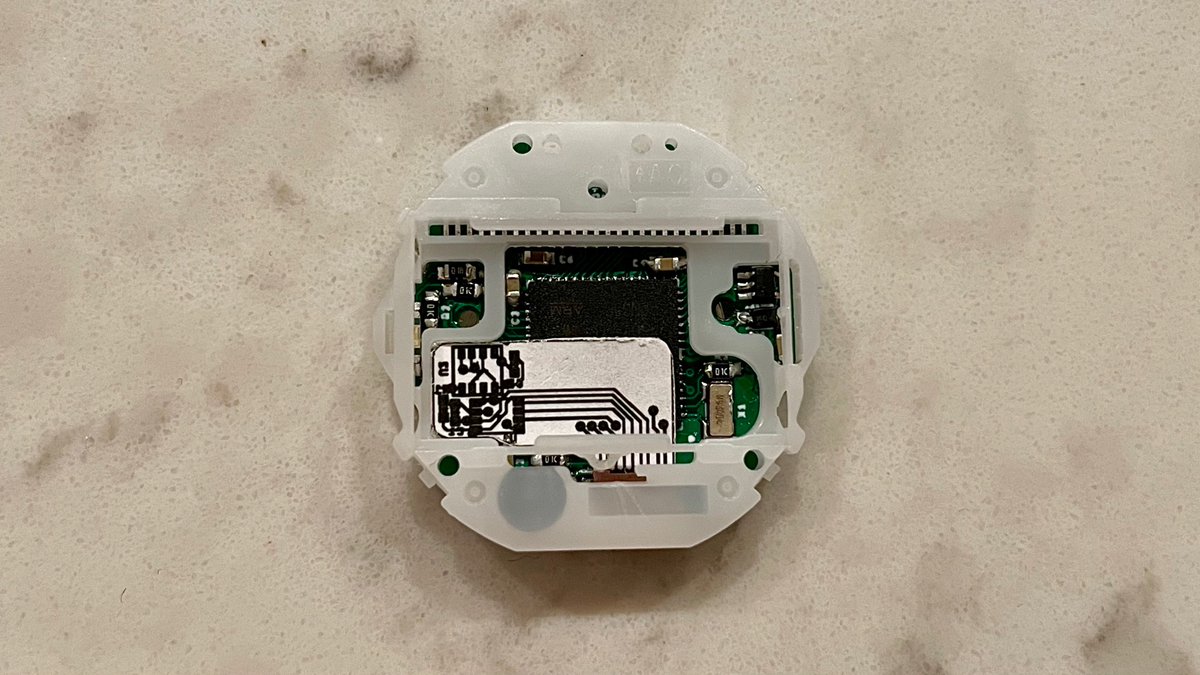

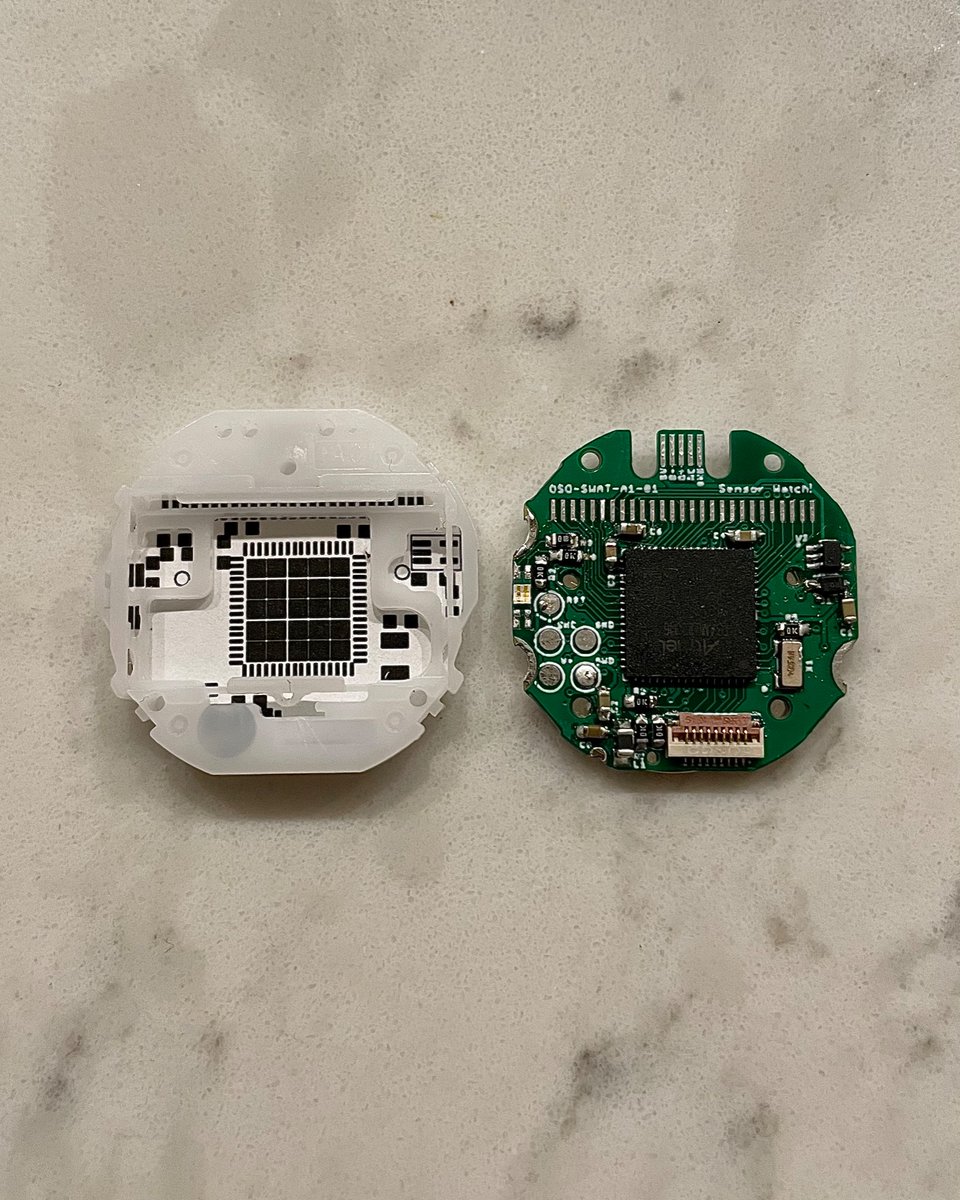

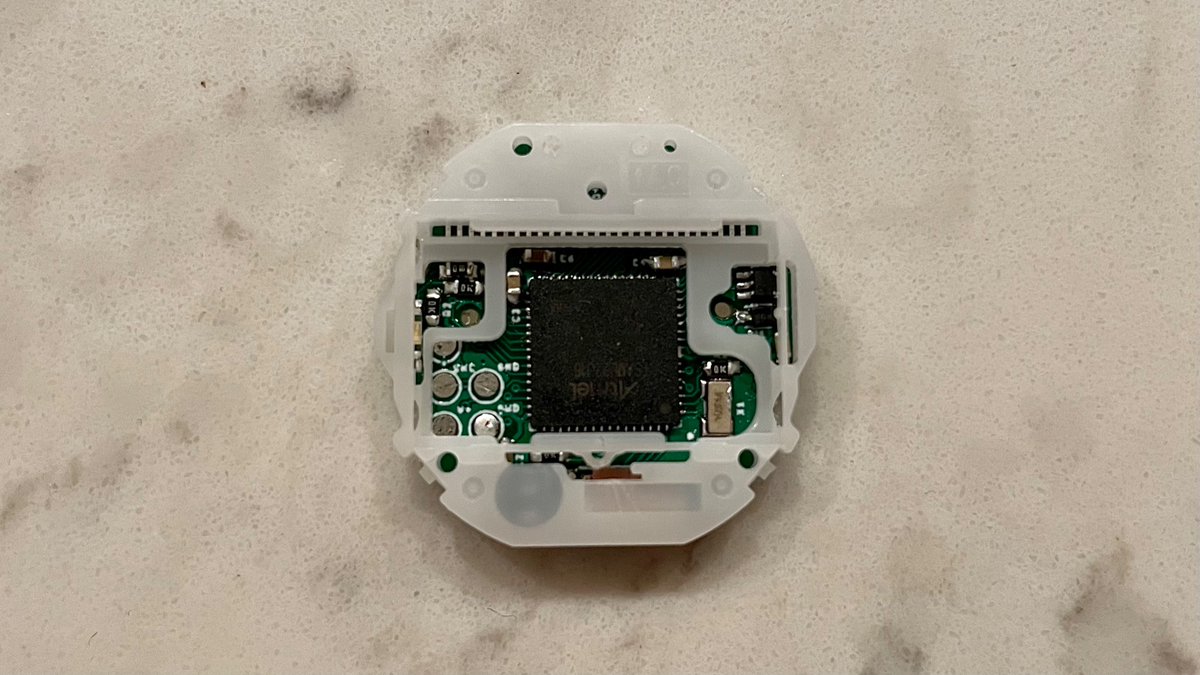

the data sheet suggested I could use a 32k crystal with low load capacitance and omit external capacitors. to be fair I pulled the caps off of one prototype to try it, and it seemed to work… then I omitted them from the design only to find that now the crystal doesn’t oscillate.
(original)
Replying to @josecastillo
We’ll get there.
(original)
Replying to @josecastillo
on the upside (downside?), I’m doing such a terrible job at porting the software libraries I need, odds are I’ll need the extra time just to find my way out of the firmware morass in which I’m currently tangled.
(original)

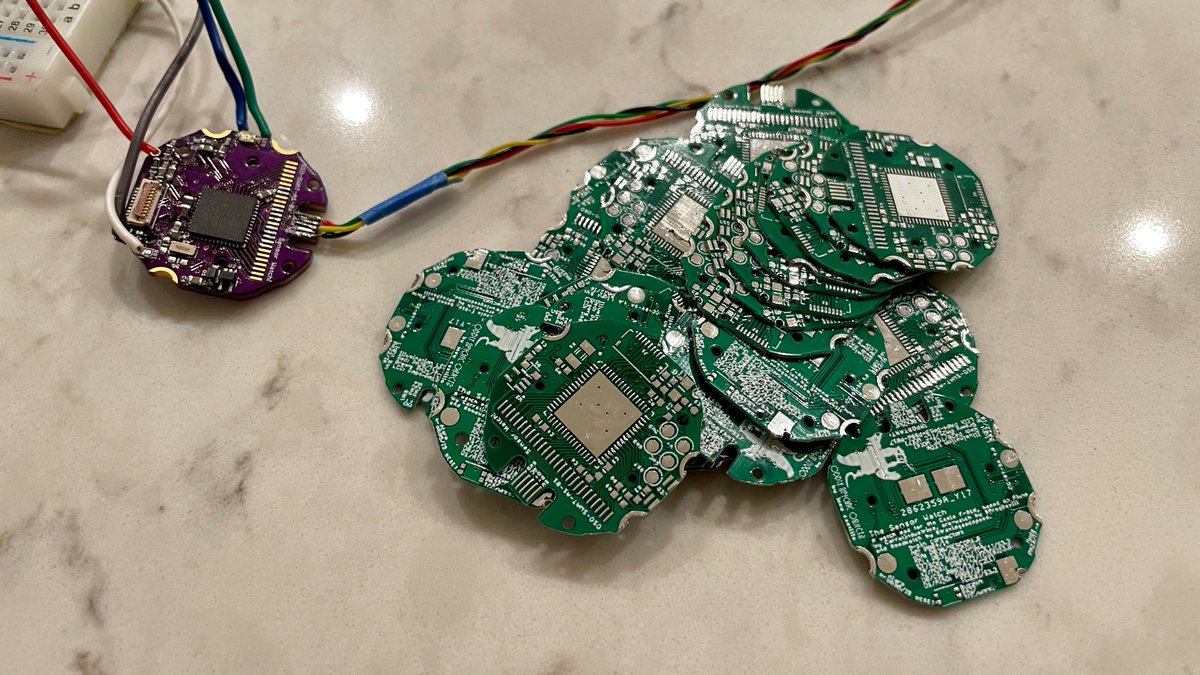

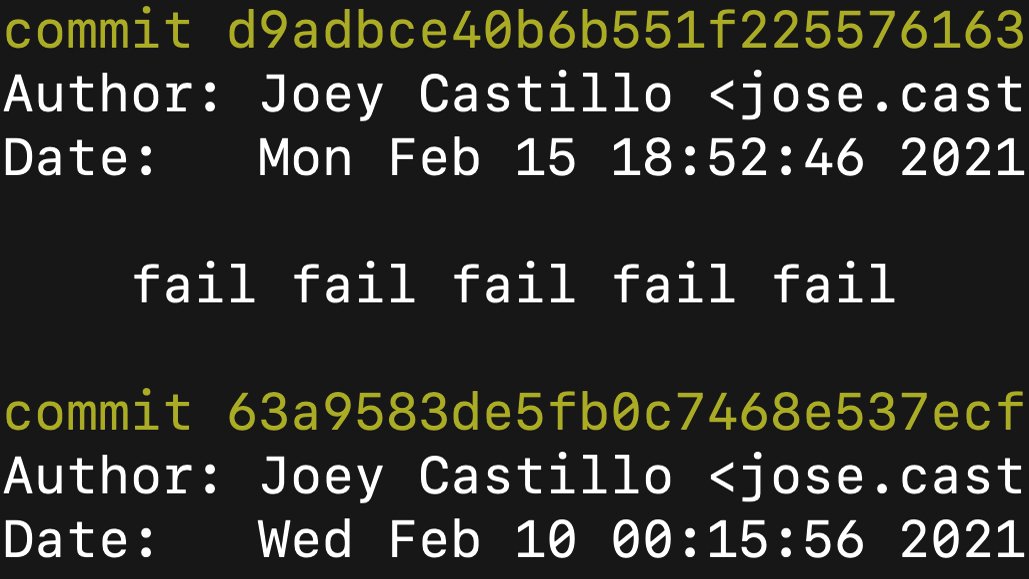

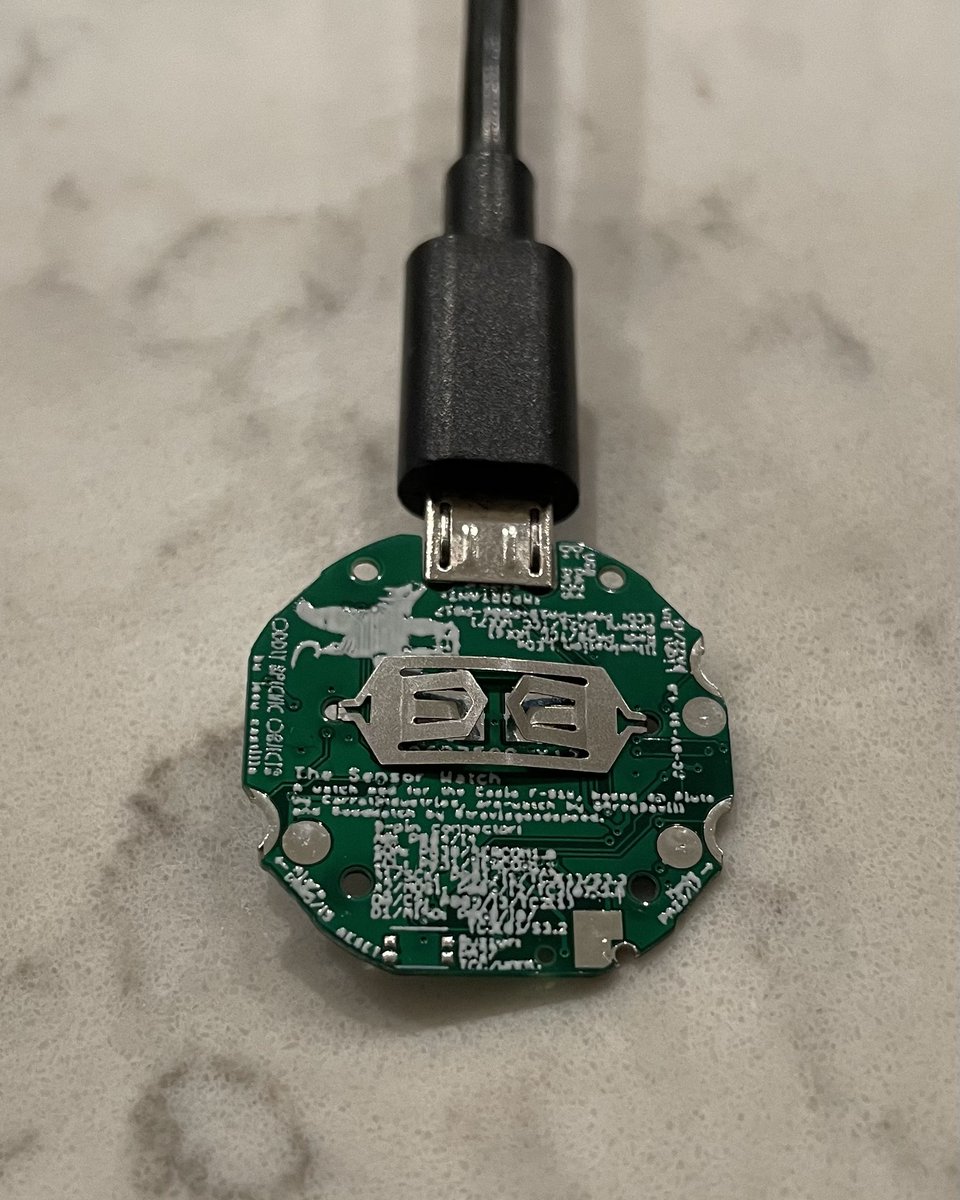

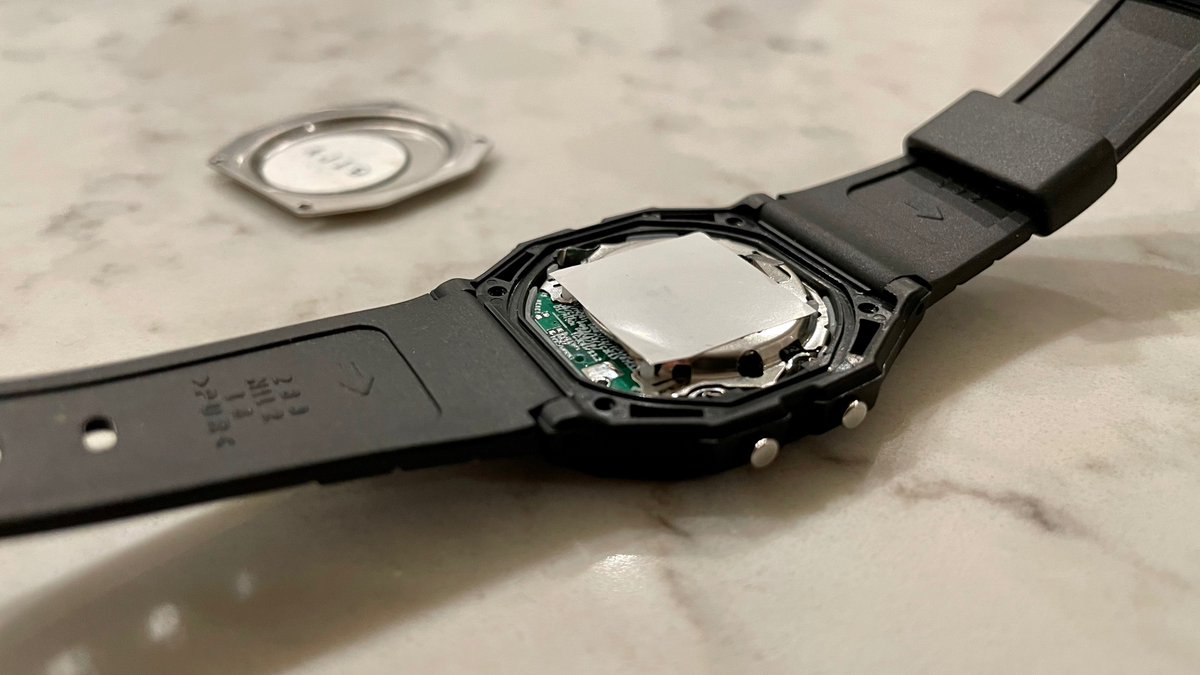

i’m without question upset about the fail I brought upon myself with this rev. But there are wins in here too. The pinout is set, and I can now address all segments of the F-91W LCD. Will have to burn another $30 and 2 weeks waiting for boards with the tweak, but hey, so it goes.
(original)
on a more joyful note, my sister and I wandered out to Jamaica Bay Wildlife Refuge yesterday. Eleven years now in NYC, and somehow I had never made it out there before. Magical spot.
(original)
current mood
(original)
Replying to @yacky_yam and @kaeptnkrunch
Still waiting on that one last part, a navigation joystick, before I can get a first run of boards made. Unfortunately the order just barely didn’t make it out of China before the lunar new year, so it’ll be a bit more of a wait 😕
(original)
Replying to @josecastillo
but i also recognize that for the better part of a decade i’ve been guarded and armored, refusing to let anyone too close. because the truth is, i like living life on my own terms. idk. i may try one day to do better. it isn’t much. but it’s the valentine’s day wish i can manage.
(original)
Replying to @josecastillo
but looking back, i did everything on my own terms, to the point that i didn’t leave room for anyone else. surely part of my issue is years living through homophobia and fear; that kind of upfuckedness doesn’t leave your brain the moment society decides it should get better. (2/)
(original)
a few years back i wrote a mission statement for my life: “save enough money to do great work on my own terms, and trust that the right guy will catch up.” in hindsight it was not a very good mission statement. oh, it started off fine: i built my moat, and the work is sound. (1/)
(original)
This vote makes clear the dire importance of ensuring a Republican never holds the presidency again. I don’t care if Democrats aren’t to your liking. The next R to win the presidency will treat it as license to end our democracy. #voteforthedemocrat like your life depends on it.
(original)
Replying to @jasoncoon_, @autodesk, @ADSKEAGLE, @adskFusion360, @kicad_pcb and @FreeCADNews
I also the hate the idea that I’m locking anyone who wants to fork my designs into this pricing structure. It’s probably the biggest factor pushing me toward KiCad. (tho KiCad looks like a great tool, and I sense I’ll really enjoy using it once I’ve spent some more time with it)
(original)
Replying to @AdhesiveCup
I’m impressed at how many tapes have stuck around!
(original)
Replying to @mattk
Thanks! I’m going to be honest, I’ve used it in some past projects and I’m about 50/50 on actually getting it soldered down and working. But I’m better at this now than past-Joey was, so fingers crossed!
(original)
Replying to @tahnok
This is why I’m so stoked on the possibilities of the 9 pin connector and the tiny ’extra’ area… that idea totally didn’t occur to to me, but it might be doable, and I’m curious what other possibilities people might come up with!
(original)
Replying to @tahnok
Oh totally, a compass would be a great addition! And one could reuse the weekday display slot for cardinal directions: there’s exactly one slot on the watch display that can show a W.
(original)

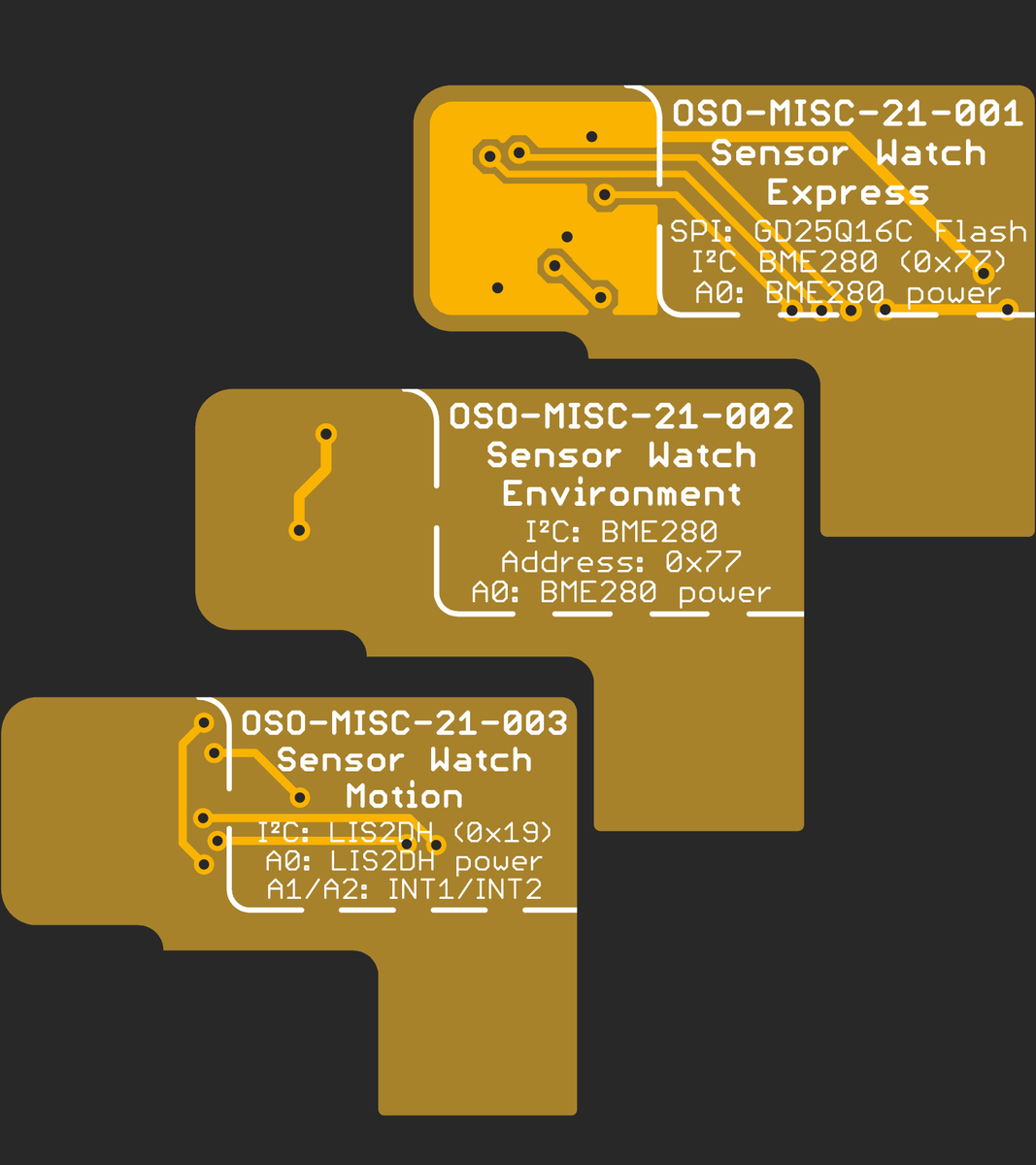

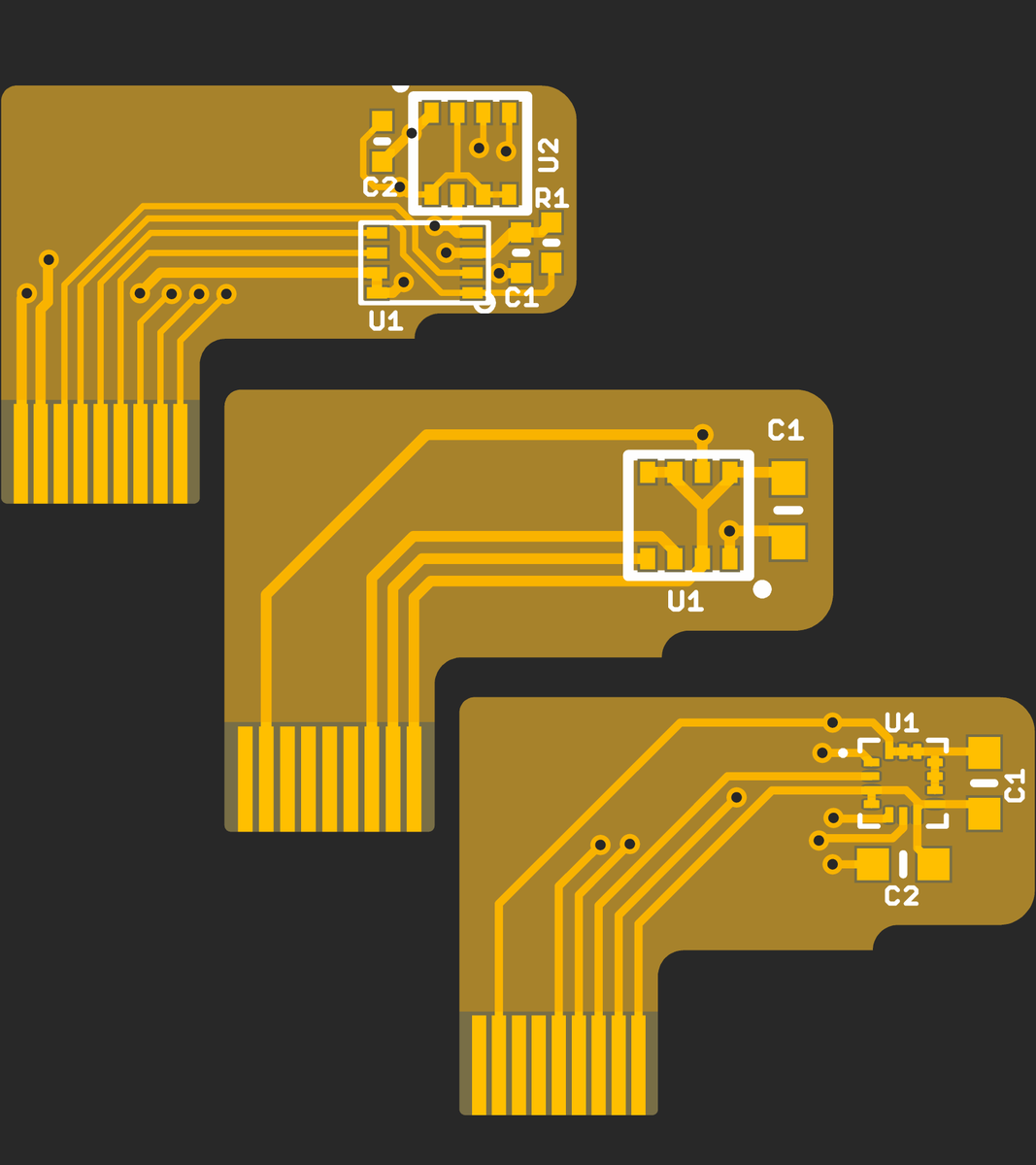

came up with three extension boards for the Sensor Watch tonight. Well, two; one just adds a Flash chip, tho I expect it won’t work all that well. The space available for extra parts in the watch case is minuscule: <6x6mm, and no part over 1mm tall. Still, room for possibilities!
(original)
Replying to @lisica27538942
Big brains, little power, I hope!
(original)

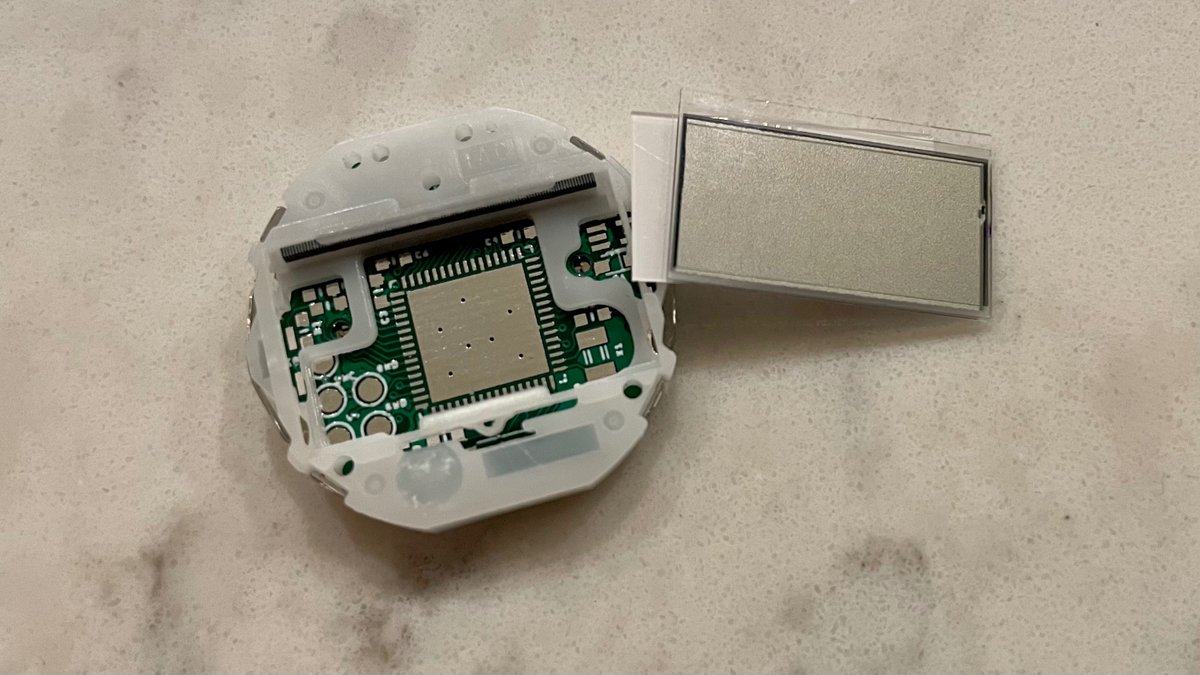

more paper craft fit tests. Because it wasn’t ambitious enough to stuff one custom PCB into a 34mm watch case. I’m going to try for two.
